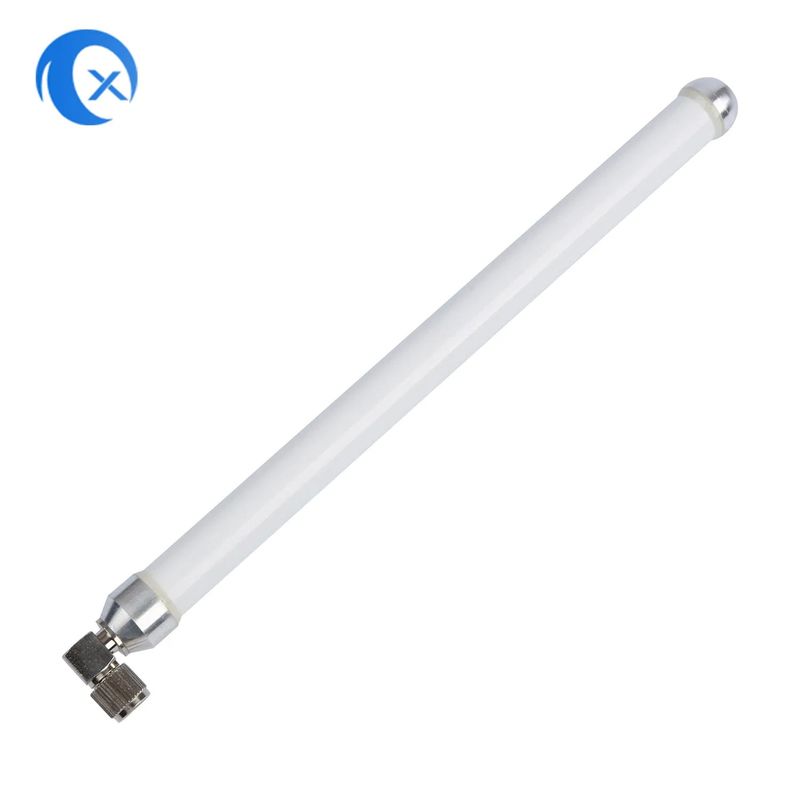

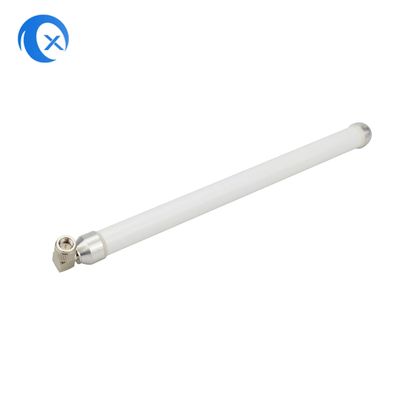

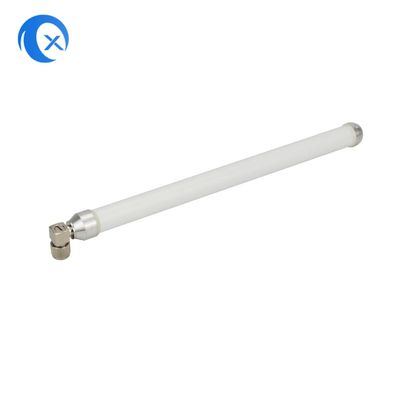

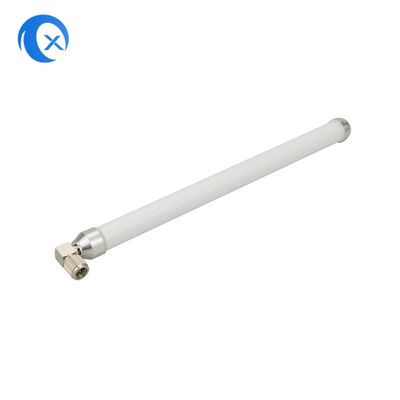

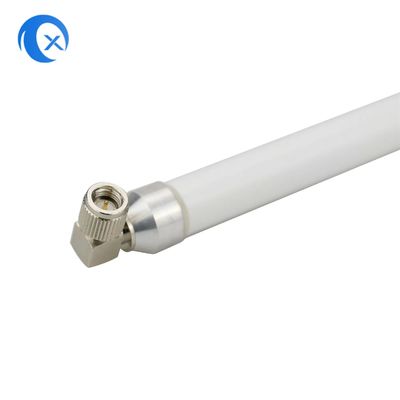

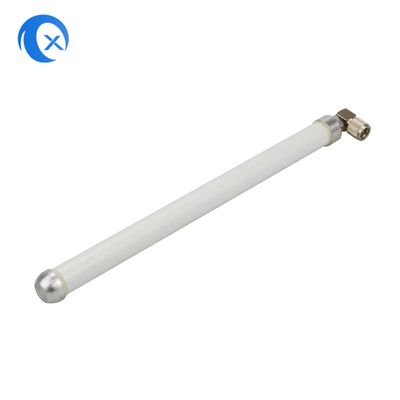

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

صورة كبيرة :  2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

تفاصيل المنتج: شروط الدفع والشحن:
الحد الأدنى لكمية: 100
الأسعار: 8.9

2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector

وصف
رقم النموذج: TX-HG005 نموذج الهيكل: هوائي السطح
VSWR: 1.5 ~ 2 يكسب: 5 DBI
أبعاد: 18*200 وزن صافي: 36 غرام
مادة: الألياف الزجاجية تكرار: 2.4 جيجا هرتز
الاستقطاب: خطي مقاومة: 50 أوم
مادة المشعّل: النحاس نوع الموصل: موصل SMA ذكر
درجة حرارة التشغيل: -20 درجة مئوية ~ +60 درجة مئوية درجة حرارة التخزين: -40 درجة مئوية ~ +80 درجة مئوية
نوع الكابل: /
إبراز:

2.4GHz fiberglass base antenna,5dBi SMA connector antenna,fiberglass base station antenna with SMA

,

5dBi SMA connector antenna

,

fiberglass base station antenna with SMA

2.4G 5dBi Waterproof Omni UHF/VHF Fiberglass Antenna
2.4G 5dBi waterproof Omni UHF/VHF fiberglass antenna
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 0 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 1 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 2
Electrical Characteristics
Frequency 2.4 GHz
V.S.W.R <= 2.0
Antenna Gain 5 dBi
Polarization Linear
Impedance 50 Ohm
Material & Mechanical Characteristics
Material of Radiator Brass
Material of Plastic Fiberglass
Cable Type /
Connector Type SMA male connector
Environmental
Operation Temperature -20˚C ~ +60˚C
Storage Temperature -40˚C ~ +80˚C
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 3 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 4
Teng Xiang electronics is an experienced manufacturer of RF products. Especially in the range of Antennas, RF coaxial cable assemblies, RF connectors. We aim to deliver innovative technologies and solutions to meet the rapidly evolving wireless industry catering to 5G, 4G (LTE), 3G, 2G, WiFi, ISM, IoT solutions, Iridium communications, GPS/GLONASS/BeiDou frequencies, and more. With a focus on telecommunications, Security, Automotive, Medical, IoT, and other markets. We provide a customized solution according to customer's requirements. With our in-house design, R&D, and manufacturing, the team is always on hand to develop a high-quality product for customers. By providing our clients and customers with high-quality products and exceptional customer service, we focus on all our customers and provide them with the exact same excellent service and considerations.
2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 5 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 6 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 7 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 8 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 9 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 10 2.4GHz 5dBi Fiberglass Base Antenna with SMA Connector 11
Why Choose Us?
  • Hundreds of antenna products for optional, they used for communication, IoT devices, security camera, smart home/city, automotive, medical, drone, etc.
  • We provide a customized solution according to your requirements, for antennas, coaxial cables, and plastic parts. With our in-house design, R&D, testing, and manufacturing.
  • More than 200 employees, and auto-assembly lines in the factory, no worries about the production capability.
  • By supplying our clients with high-quality products at competitive prices, we try to be all customer's partners and provides excellent services.
